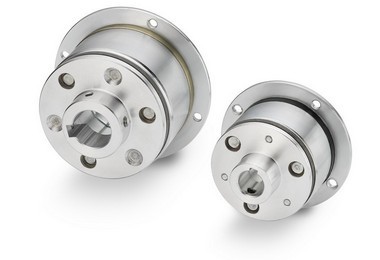

RAB永久磁鐵斷電制動系列能夠在斷電時提供零背隙制動和/或負載保持。當磁場（電磁鐵）固定并防止旋轉時，輸出輪轂總成固定在軸上。在沒有動力的情況下，固定和旋轉部件接合，從而停止和/或保持負載。當線圈通電時，旋轉部件分離，從而允許軸自由旋轉。RAB系列符合RoHS、REACH和UL F級標準。
| 框架尺寸 | 11 | 13 | 15 | 20 | 25 | 32 | 40 | 50? | 60 |
|---|---|---|---|---|---|---|---|---|---|
| 框架外徑： mm (in) |
28 (1.10) |
32 (1.26) |
40 (1.57) |
50 (1.97) |
63 (2.48) |
80 (3.15) |
100 (3.94) |
125 (4.92) |
160 (6.30) |
| 靜態扭矩： Nm (lb-in) |
0.4 (0.04) |
1.0 (8.85) |
2.0 (17.7) |
4.5 (39.8) |
9.0 (79.6) |
18.0 (159.3) |
36.0 (318.6) |
72.0 (637.2) |
140.0 (1239) |
| 線圈電壓： Vdc |
24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| 最大功率： 瓦 |
8.0 | 10.0 | 11.0 | 12.0 | 18.0 | 24.0 | 26.0 | 40.0 | 50.0 |
| 重量： kg（lb） |
0.12 (0.26) |
0.15 (0.33) |
0.22 (0.49) |
0.38 (0.84) |
0.56 (1.23) |
1.0 (2.20) |
1.86 (4.10) |
3.23 (7.12) |
5.93 (13.07) |
