  6. MLA23B39-1378S0250-C3-S03

MLA23B39-1378S0250-C3-S03

MLA23B39-1378S0250-C3-S03
MLA23B39-1378S0250-C3-S03

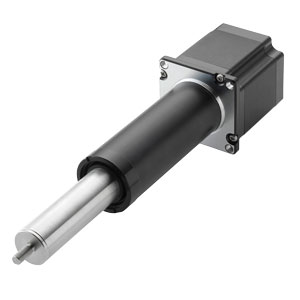

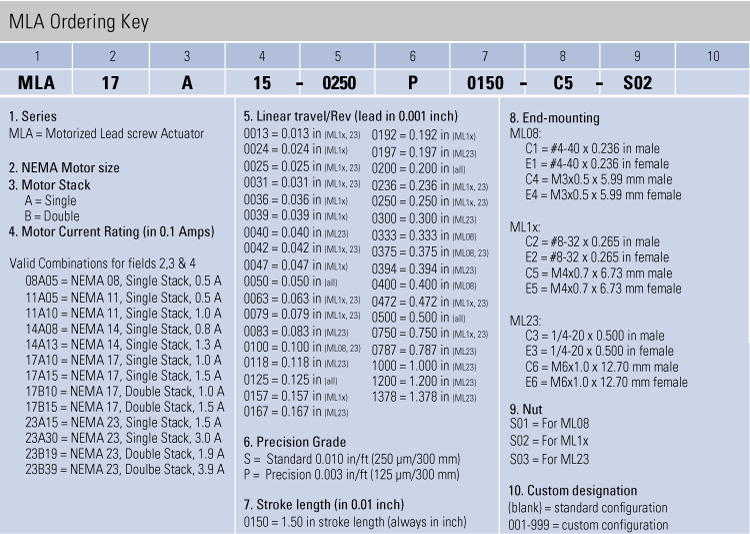

Motorized Lead screw Actuator, NEMA 23, 0.00689 英寸 Travel/Step, 2.5 英寸 Stroke, 1/4-20 x 0.500 in Male Thread End Mounting, Double Stack, 3.9 A

  • Motor comes standard with ?ying leads
  • Cover tube length (L) = stroke (S) + 1.74 in. (44.2 mm).
  • Actuator configurations are able to withstand some radial and moment loading due to the bushing design included inside the assembly.
  • 噪音更低。

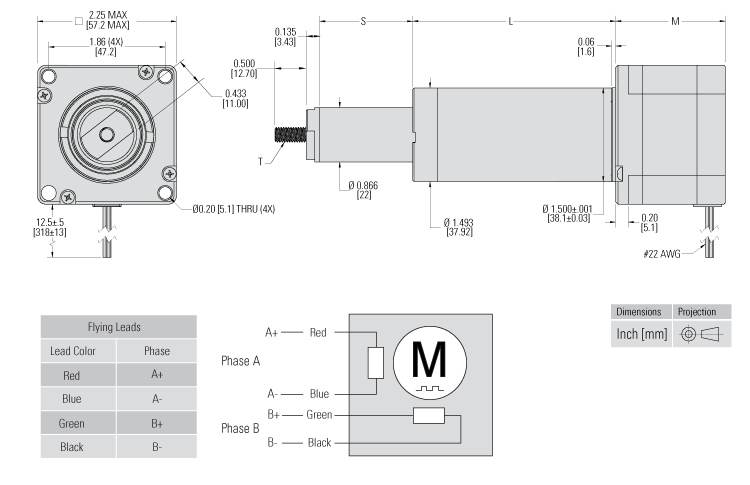

Dimensions

dimensions
尺寸價值
[L]4.24 英寸
[M]2.59 英寸
[S]2.5 英寸
[T]1/4-20 Male Thread
Screw, Lead1.378 英寸
Travel/Step0.00689 英寸

Specifications

Specifications價值
Current per Phase3.9 A
Motor, End Play0.002 in @ 2 lb
Motor, Frame SizeNEMA 23
Motor, Insulation Resistance100 Mohm @ 500 VDC
Motor, Radial Play, Max0.001 in @ 1 lb
Self-locking否
SeriesActuator
Temperature Max125 °F
Temperature Min15 °F
Voltage per Phase1.99 直流電壓伏特
Weight2.4 lb
磁線絕緣Class B 266 °F
導桿與軸的安裝同心度（TIR）0.003 英寸
電感1.45 mH
電阻0.51 Ω
堆棧類型Double Stack
功率損耗7.76 W
介電強度500 VAC for 1 minute
濕度，最大值85 %
溫度，存儲-4 to 122 ºF
溫度，外殼 - 最大值176 °F
軸與安裝面的垂直度（TIR）0.003 英寸
轉動慣量2.13 oz-in²

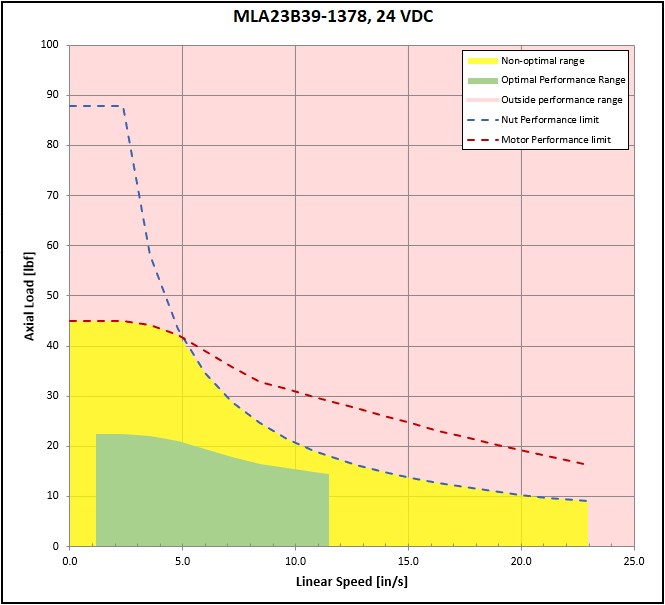

Performance

performance graphic
Performance價值
Load, Max @ Max Speed14.5 磅力
Load, Max @ Min Speed22.5 磅力
Max Speed (Recommended)11.48 英寸每秒
Motor, Step Angle1.8 °
Screw, Lead Accuracy0.01 in/ft
Travel/Step0.00689 英寸
