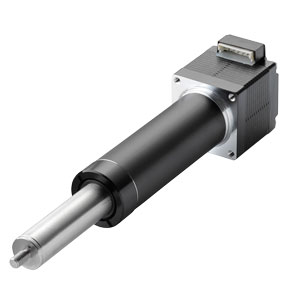

Motorized Lead screw Actuator, NEMA 11, 0.003545 英寸 Travel/Step, 2.5 英寸 Stroke, M4x0.7 x 6.73 mm Male Thread End Mounting, Single Stack, 0.51 A

  • Molex 53253-0670 connector shown. Wire harness with Molex 51065-06000 mating connector and ?ying leads included with motor.
  • Cover tube length (L) = stroke (S) + 1.16 in (29.5 mm).
  • Actuator configurations are able to withstand some radial and moment loading due to the bushing design included inside the assembly.
  • 噪音更低。

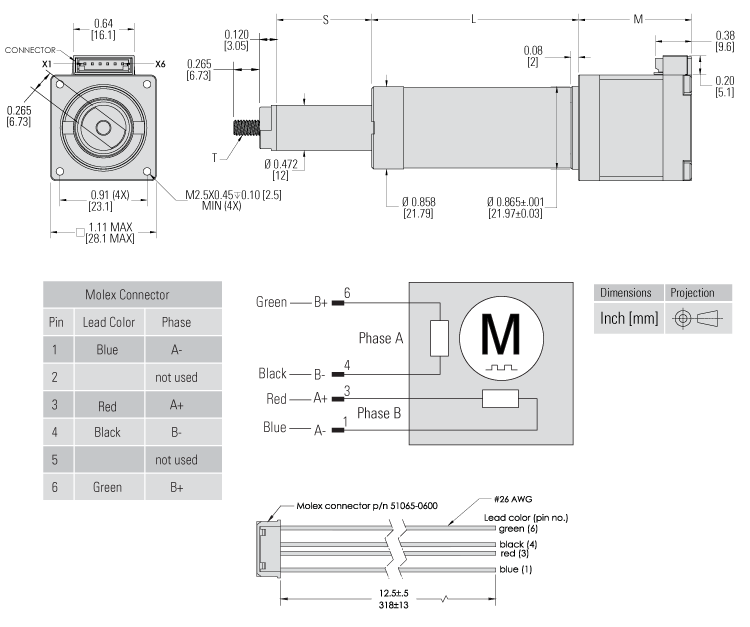

Dimensions

dimensions
尺寸價值
[L]3.66 英寸
[M]1.26 英寸
[S]2.5 英寸
[T]M4x0.7 Male Thread
Screw, Lead0.709 英寸
Travel/Step0.00355 英寸

Specifications

Specifications價值
Current per Phase0.51 A
Motor, End Play0.002 in @ 2 lb
Motor, Frame SizeNEMA 11
Motor, Insulation Resistance100 Mohm @ 500 VDC
Motor, Radial Play, Max0.001 in @ 1 lb
Self-locking否
SeriesActuator
Temperature Max125 °F
Temperature Min15 °F
Voltage per Phase3.85 直流電壓伏特
Weight0.46 lb
磁線絕緣Class B 266 °F
導桿與軸的安裝同心度（TIR）0.003 英寸
電感5.22 mH
電阻7.54 Ω
堆棧類型Single Stack
功率損耗1.96 W
介電強度500 VAC for 1 minute
濕度，最大值85 %
溫度，存儲-4 to 122 ºF
溫度，外殼 - 最大值140 °F
軸與安裝面的垂直度（TIR）0.003 英寸
轉動慣量0.06 oz-in²

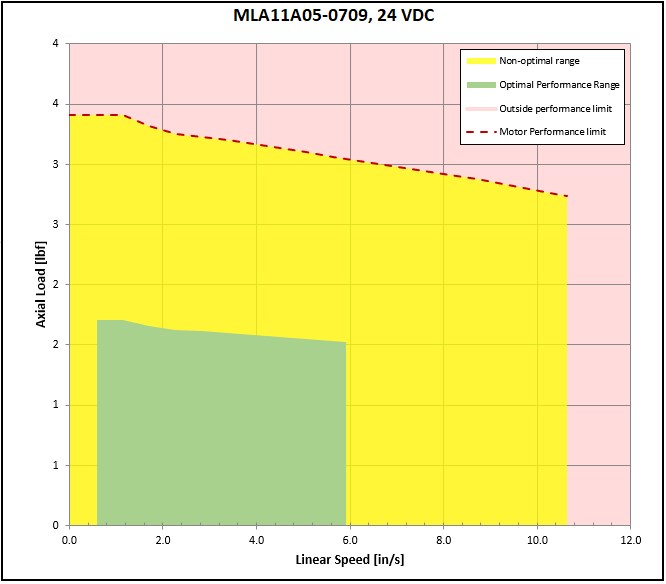

Performance

performance graphic
Performance價值
Load, Max @ Max Speed1.5 磅力
Load, Max @ Min Speed1.7 磅力
Max Speed (Recommended)5.9 英寸每秒
Motor, Step Angle1.8 °
Screw, Lead Accuracy0.01 in/ft
Travel/Step0.00355 英寸
