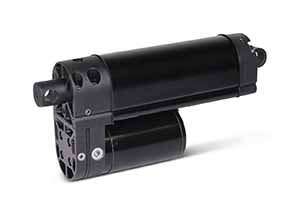

H3B-12-2B33-D-06-0020

H3B-12-2B33-D-06-0020
H3B-12-2B33-D-06-0020

執行器, H-Track, 12 直流電壓伏特

  • Units are lubricated for life during assembly requiring no adjustments or maintenance.
  • Linear H-Track actuators operate in both tension and compression. They will hold a load stationary without power in either direction.
  • Electric control provides clean, smooth linear motion without hydraulic plumbing or other expensive componentry.
  • Simple installation and operation.
  • Safely absorbs impact shocks.
  • Resists drifting and locks during load reversals.

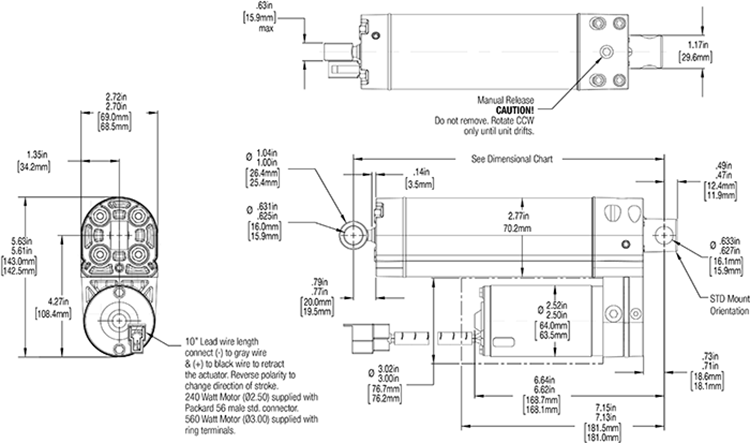

Dimensions

dimensions

Specifications

Specifications價值
Temperature Max150 °F
Temperature Min-20 °F
材質銅；鋼；鋅；鋁合金；塑料
電壓12 直流電壓伏特

Performance

Performance價值
Duty Cyle25 %
負載，最大靜態5000 磅力
