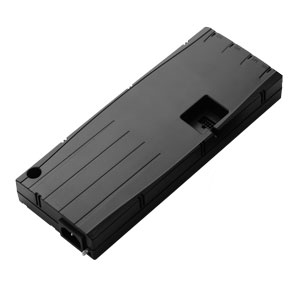

DCG24-1U-0160

DCG24-1U-0160
DCG24-1U-0160

執行器, SINGLE MOTOR DRIVE, 115V

  • Control for operation of 24V Actuator
  • Small and light weight control operated via a control pendant which is ordered separately
  • Built in Electronic Limit Switches (ELS) stop the actuator automatically at end of stroke or mid stroke stall
  • The control pendant is ordered separately
  • The “Control to Actuator” cable is ordered separately and comes in several version depending of the type of actuator being used
  • 24 Vdc 8 Amp max

Dimensions

dimensions

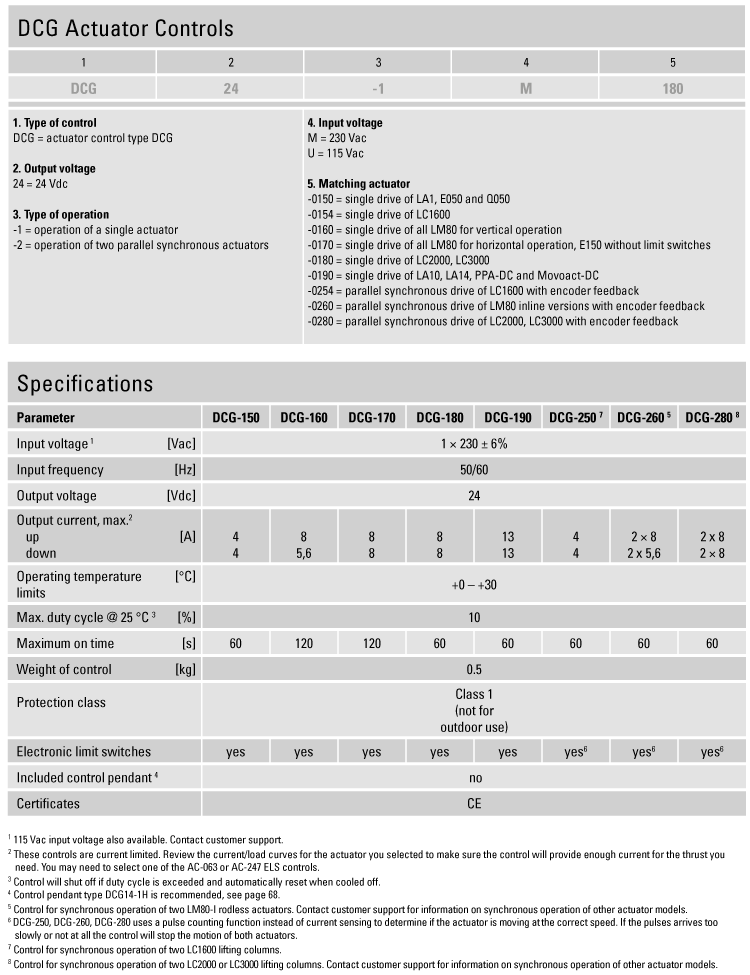

Specifications

Specifications價值
Matching ActuatorSingle drive of all LM80-V
Weight0.5 kg
電壓115 交流電壓伏特
電壓24 直流電壓伏特

Performance

Performance價值
Duty Cyle10 %
