1DA12J00L

1DA12J00L
1DA12J00L

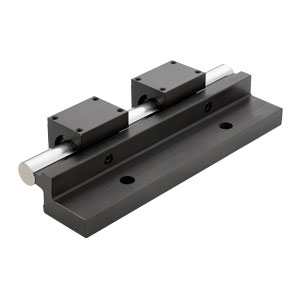

直線導軌, 1DA, Round Shaft, Continuously supported, Side Mount, SSRA, 2 Pillow Blocks, 0.750 英寸, One Guide Shaft, 1600 N Dynamic Load Capacity

  • 連續支撐導向軸組件（英制）組成：
  • 兩個單軸承座，開口型
  • 1個SSRA，側裝，連續軸支撐
  • 一個60 Case®導向軸

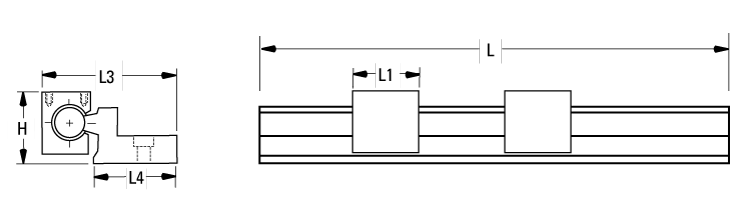

Dimensions

dimensions
尺寸價值
[d] 軸，標稱直徑0.75 英寸
[H]2.062 英寸
[L1]1.88 英寸
[L3]3.55 英寸
[L4]1.94 英寸

Specifications

Specifications價值
Pillow Block or Carriage2 Pillow Blocks
Shaft StyleRound Shaft
SupportContinuously supported, Side Mount
Temperature Max185 °F
材質鋼；鋁合金；塑料

Performance

Performance價值
負載能力，動態1600 N
